Friday, February 24, 2012

Distributed transaction error and binding exception

ORA-00164: distributed autonomous transaction disallowed within migratable distributed transaction / ORA-24777: use of non-migratable database link not allowed

Situation

A BPEL process used an XA datasource with Global transaction support to call a PL/SQL function. This function used a private database link to insert data in a local table. The following exceptions occurred;

ORA-24777: use of non-migratable database link not allowed

when using pragma autonomous transaction in the function;

ORA-00164: distributed autonomous transaction disallowed within migratable distributed transaction

Splitting the fetching of data from the view and the inserting in the local table by using collections, did not help. Also adding commit statements made no difference.

Solution

The best solution is not to use an XA datasource. Other solutions include using a shared public database link or setting the database server to MTS (this is not advisable!).

Below illustrates how to configure a datasource not to support distributed transactions.

In the JDBC datasource configuration, Configuration, Connection pool, use the following driver for Oracle databases; oracle.jdbc.OracleDriver.

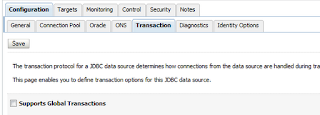

Under Configuration, transactions; disable Supports Global Transactions.





Under the DbAdapter configuration, Outbound Connection Pools, (specific) connection factory; make sure under properties that the dataSourceName is filled and not xADataSourceName.

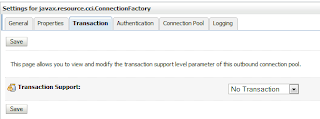

Under transaction support specify; No transaction




I had to restart the domain for the changes to become effective.


Exception occured when binding was invoked

Situation

After adding a ConnectionFactory to the DbAdapter, I notived the JNDI name was incorrect. I changed the JNDI name. I made sure a DataSource was created and specified by the ConnectionFactory. After using a BPEL process to connect to the database (using the ConnectionFactory specified in the DbAdapter), I got the following error.

Error

<bindingFault>
<part  name="summary">
<summary>Exception occured when binding was invoked. Exception occured during invocation of JCA binding: "JCA Binding execute of Reference operation 'censored_DB' failed due to: Could not create/access the TopLink Session. This session is used to connect to the datastore. Caused by javax.resource.spi.InvalidPropertyException: Missing Property Exception. Missing Property: [ConnectionFactory> xADataSourceName or dataSourceName]. You may have set a property (in _db.jca) which requires another property to be set also. Make sure the property is set in the interaction (activation) spec by editing its definition in _db.jca. . You may need to configure the connection settings in the deployment descriptor (i.e. DbAdapter.rar#META-INF/weblogic-ra.xml) and restart the server. This exception is considered not retriable, likely due to a modelling mistake. ". The invoked JCA adapter raised a resource exception. Please examine the above error message carefully to determine a resolution. </summary>
</part>
<part  name="detail">
<detail>Missing Property Exception. Missing Property: [ConnectionFactory> xADataSourceName or dataSourceName]. You may have set a property (in _db.jca) which requires another property to be set also. Make sure the property is set in the interaction (activation) spec by editing its definition in _db.jca. </detail>
</part>
<part  name="code">
<code>null</code>
</part>
</bindingFault>

Solution

I had not specified any unusual properties in the .jca files. At first I of course checked I had correctly specified the DataSource in the connectionfactory. I restarted the JDBC connection pool and updated the DbAdapter. This did not help. Recreating the ConnectionFactory however, solved my issue.
